Red light device listings love numbers: 660 nm, 850 nm, 180 LEDs, dual-chip, mW/cm². Most never explain what those numbers describe, and some attach promises to them that the numbers can’t carry. This is red light device specs explained in plain English, line by line, so you can tell what a spec sheet is telling you and notice what it leaves out.
The short answer: Wavelength (in nanometers) tells you the color of the light; 630–660 nm is deep red and 850 nm is near-infrared, which looks faint or dark to the eye. Irradiance (mW/cm²) tells you how much light power reaches a surface, and it only means something alongside the distance it was measured at. LED count describes hardware, not coverage. A good sheet also states the timer, power source and eye-safety guidance, and says plainly when a number isn’t published.
Wavelength: what the nm number actually describes
A nanometer (nm) is one billionth of a meter, and on a light device it names the wavelength, which your eye reads as color. NASA’s overview of the visible light spectrum puts what the human eye typically detects at roughly 380 to 700 nm. Violet and blue sit at the short end, red at the long end.
- 630 nm and 660 nm: both are red, well inside the visible range. 660 nm is a deeper, darker red than 630 nm. These are the numbers you’ll see most often on red panels and belts.
- 850 nm: near-infrared, just past what the eye can see. These LEDs look dim or even switched off while running. That’s expected behavior, not a fault.
- “Dual-chip”: each LED package holds two chips, typically one red and one near-infrared, so both wavelengths come from the same point.
For a sense of scale, NASA’s page on infrared waves notes that a typical TV remote control uses infrared at around 940 nm, which is why you can’t see the remote’s signal. An 850 nm LED sits between visible red and that remote, which is why it shows a faint glow at most.
Two of our devices publish exact wavelengths. The BeamZen Red Light Panel ($279.99) lists dual-chip LEDs with 660 nm red and 850 nm near-infrared in each LED. The ThermaZen Red Light Belt ($92.99) lists 60 LEDs at 660 nm red and 850 nm near-infrared. The FollicZen Red Light Cap ($172.99) says red and near-infrared diodes but doesn’t publish the nanometer values, so neither do we. One more point matters: a wavelength number describes the light. It is not a promise about what that light does, and a sheet that ties an outcome to a number is making a claim the number itself doesn’t support.
Irradiance: why the distance matters as much as the number
Irradiance is the light power arriving on a surface, usually written as milliwatts per square centimeter (mW/cm²).
The key thing to understand is that irradiance is not a fixed property of the device. It depends on where you measure it. Move farther from the light and the same output spreads over a larger area, so the reading drops, and it drops quickly: for a small light source, doubling the distance leaves roughly a quarter of the irradiance. Large panels fall off less steeply up close, but the direction is the same.
So when you read an irradiance figure, check for three things:
- The distance it was measured at, for example at 15 cm (6 in). A number with no distance can’t be compared with anything.
- Where on the device it was measured. The center of a panel usually reads higher than the edges.
- Whether it’s a measured value or a calculated one. A sheet that says how it measured is more useful than one that just prints a large number.
None of the four devices in this guide publish an irradiance figure, and we don’t estimate one for them. For the panel, the product guidance is simply to sit or lie a comfortable distance away with the area you want in the light uncovered. Closer isn’t a setting to chase; comfort and the product’s own positioning guidance come first.
LED count versus coverage
LED count is the easiest number to print and the easiest to over-read. On its own, it tells you how many light sources are fitted, not how evenly they’re spread, how large the lit area is, or how far each one sits from your skin. A few things to consider alongside it:
- Chips per LED. A dual-chip LED counts as one LED but holds two chips, so two devices with the same count can carry different numbers of chips.
- Spacing and layout. Sixty LEDs spread across a flexible pad cover a different shape from sixty packed into a small square.
- Form factor. A wearable holds its LEDs at a fixed position against you; a panel covers whatever area you turn toward it.
Our devices show the range. The FollicZen cap arranges 180 red and near-infrared LEDs in a circular panel inside a black baseball-cap shell, covering the crown without any aiming. The ThermaZen belt spreads 60 LEDs across its pad, held in place by a soft adjustable strap. The BeamZen panel doesn’t publish an LED count; its format is a tabletop panel you position toward the area you choose. If you’re deciding between shapes, our practical buyer’s guide to red light devices walks through panels, wearables and masks by use.
Timers and session control
A timer is one of the most practical specs on the sheet, because it decides whether you watch the clock or the device does. Look for three details: whether a timer exists, whether it switches the device off automatically, and whether the session length is stated in the guidance.

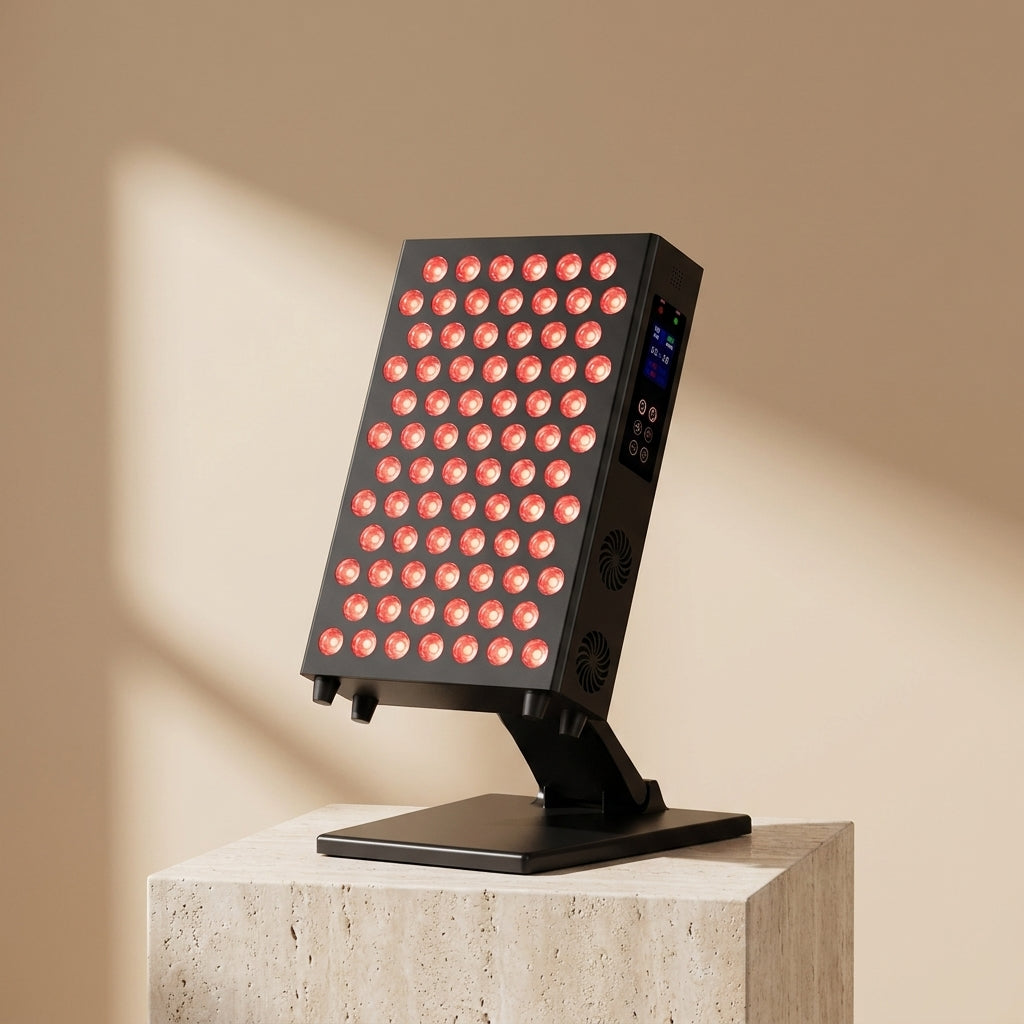

- BeamZen panel: built-in timer with automatic switch-off. The guidance suggests starting with sessions of about 10–15 minutes.
- FollicZen cap: sessions are started and stopped from a wired handheld controller with a display. Guidance: around 10–15 minutes, a few times a week.
- ThermaZen belt: no timer is published. Typical sessions are 10–20 minutes, so set one on your phone.
- GlowZen LED Facial Mask: no timer is published. Guidance is 10–15 minutes, a few evenings a week.
If a sheet gives no session length at all, that’s a gap worth asking about before you buy.
Flicker, power and warmth
Flicker. Many LED drivers dim or regulate light by switching it on and off very quickly. Some sheets advertise “flicker-free” operation; others say nothing. None of our four product pages publish flicker data, so we can’t tell you a figure. A rough check some people use is to look at the running device through a phone camera for moving bands, though that isn’t a measurement. If a light ever feels uncomfortable to be near, stop the session.
Power. This decides where you can use the device. The BeamZen panel runs from mains power. The FollicZen cap uses a mains adapter, sold with an EU or US plug. The ThermaZen belt is USB powered and runs from a wall adapter, laptop or power bank; its variants add a US, EU, AU or UK wall plug, or come as the pad and cable alone. The GlowZen facial mask has a built-in rechargeable battery with USB charging.
Warmth. LEDs produce some heat. The ThermaZen page lists gentle surface warmth during operation and suggests a thin cloth underneath if it ever feels too warm. The FollicZen page mentions a faint sense of warmth from the diodes. The BeamZen guidance is to let the panel cool after longer sessions before packing it away.
Eye protection lines to look for
Every one of these devices carries the same core instruction: do not look directly into the LEDs. The panel and the cap add: close your eyes or use the included eye protection where provided, and the BeamZen box contents list eye protection (where provided).
Near-infrared deserves a special note. Because 850 nm LEDs look dim, it’s tempting to peer at them to check they’re working. Don’t. A faint glow doesn’t mean there’s nothing there; it means your eyes are poor at seeing that wavelength. Check a device is running by its controller or display, not by looking into it. For face sessions, keep your eyes closed throughout. If you have an eye condition or are sensitive to bright light, ask an eye care professional before you start.
Four devices, side by side
Here is everything our four red light and LED devices publish, and what they don’t:
| Spec | BeamZen panel | FollicZen cap | ThermaZen belt | GlowZen facial mask |
|---|---|---|---|---|
| Price | $279.99 | $172.99 | $92.99 | $109.99 |
| Wavelengths | 660 nm + 850 nm in each LED | Red + near-infrared; nm not published | 660 nm + 850 nm | 7 colors; nm not published |
| LED count | Not published | 180 | 60 | Not published |
| Irradiance | Not published | Not published | Not published | Not published |
| Timer | Built-in, auto switch-off | Controller with display | Not published | Not published |
| Session guidance | About 10–15 min | Around 10–15 min | 10–20 min | 10–15 min |
| Power | Mains | Mains adapter, EU or US plug | USB, optional wall plug | Built-in battery, USB |
| Format | Tabletop panel | Baseball-cap shell | Pad with strap | Rigid face shell |
All four live in our red light and LED collection. For more on the two most specific formats, see the BeamZen panel buyer’s guide and our explainer on what to expect from a red light cap.
Reading the claims around the specs
A spec sheet is useful when it describes the device: wavelength, count, power, timer, materials, care. It becomes marketing when it starts describing your body. A few habits help you read any listing critically:
- Be wary of outcomes attached to a wavelength or an LED count. The number describes the hardware; it can’t promise a result.
- Read an irradiance figure without a distance as incomplete.
- Notice borrowed authority language and before-and-after photos. They aren’t specs.
- Give credit to sheets that say “not published”. It’s a small sign the rest is written carefully.
ZenyZen products are wellness and relaxation devices, not medical devices, and we don’t make claims about what any wavelength does. If you take medication that increases light sensitivity, are pregnant, use a pacemaker or another implant, or are unsure whether a light device is right for you, check with a qualified professional first. None of these devices are meant for use over broken or irritated skin.
Frequently asked questions
What does 660 nm mean on a red light device?
It is the wavelength of the light in nanometers, which the eye reads as color. 660 nm is a deep red, inside the visible range of roughly 380 to 700 nm. The number describes the light itself, not what it does.
Why do some LEDs look switched off while the device is running?
Those are usually the near-infrared LEDs, often 850 nm. Near-infrared sits just past what the eye can see, so it looks faint or dark even when it is working. Check the controller or display instead of looking into the LEDs.
What is irradiance and why does distance matter?
Irradiance is the light power reaching a surface, usually in mW/cm². It drops as you move away from the source, so a figure only means something alongside the distance it was measured at.
Is a higher LED count always better?
Not necessarily. Count doesn’t tell you chips per LED, spacing, lit area or distance from the skin. Compare the layout and format, not just the number.
Do red light devices need eye protection?
Never look directly into the LEDs. Close your eyes, and use the included eye protection where a product provides it. The dim look of near-infrared LEDs is not a reason to look at them.
Why don’t your product pages list irradiance?
None of our red light devices publish an irradiance figure, so we don’t quote or estimate one. We list the specs that are published, such as wavelength, LED count, power and timer, and say plainly when a number isn’t available.
